斯坦福华人天团意外爆冷！AI用纯CUDA-C编内核，竟干翻PyTorch？

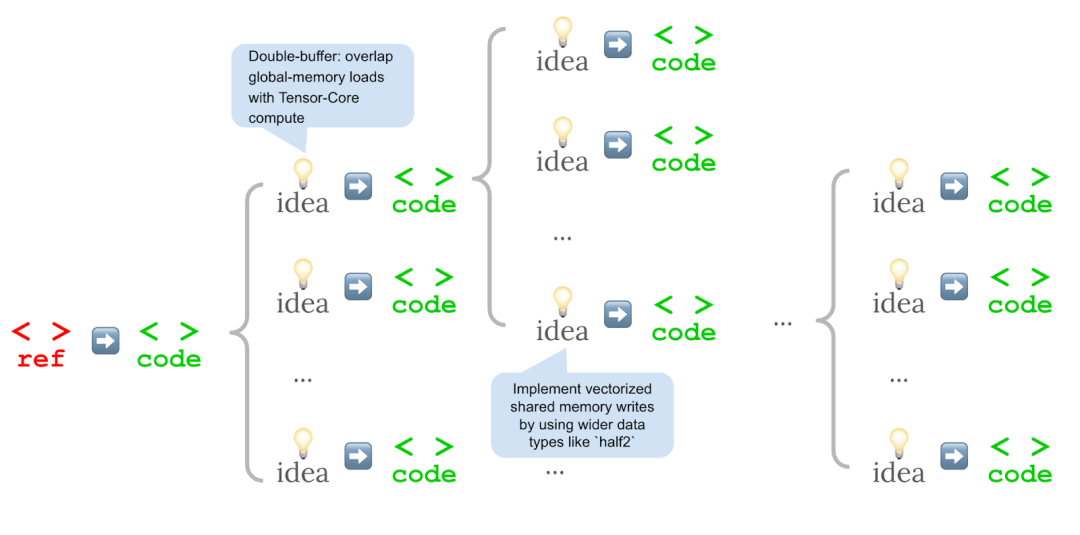

将强大的推理能力与对多个假设的并行探索相结合，能够带来性能的提升。

作者评论：这是一种算法优化，将卷积转换为隐式GEMM，这对于在Tensor Core上高效运行卷积至关重要

作者评论：因为优化涉及到使用GEMM，所以在这一轮开始时，使用了一个之前生成的现有优秀GEMM内核作为种子，这个思路是手动编写的

import torchimport torch.nn as nnimport torch.nn.functional as Ffrom torch.utils.cpp_extension import load_inlineconv2d_implicit_gemm_cuda_source = r"""#include <torch/extension.h>#include <ATen/cuda/CUDAContext.h> // For at::cuda::getCurrentCUDAStream()#include <mma.h>#include <cuda_fp16.h>using namespace nvcuda;// WMMA tile dimensions#define WMMA_M 16#define WMMA_N 16#define WMMA_K 16// Skew padding for shared memory to avoid bank conflicts#define SKEW_HALF 8 // 8 half elements (16 bytes)// CUDA built-in warpSize is 32 for supported architectures (sm_70+)// This constant is used for host-side configuration (e.g. blockDim)#define CUDA_WARP_SIZE_CONST 32 // Threadblock configuration#define WARPS_PER_BLOCK 8// THREADS_PER_BLOCK must be evaluatable by host compiler for blockDim configuration#define THREADS_PER_BLOCK (WARPS_PER_BLOCK * CUDA_WARP_SIZE_CONST) // Macro-tile dimensions computed by a threadblock// BLOCK_M_TILES_WMMA * WMMA_M = output channels processed by a block// BLOCK_N_TILES_WMMA * WMMA_N = output spatial elements processed by a block#define BLOCK_M_TILES_WMMA 8#define BLOCK_N_TILES_WMMA 8#define TILE_M_PER_BLOCK (BLOCK_M_TILES_WMMA * WMMA_M) // e.g., 8 * 16 = 128 (for C_out dimension)#define TILE_N_PER_BLOCK (BLOCK_N_TILES_WMMA * WMMA_N) // e.g., 8 * 16 = 128 (for N_batch * H_out * W_out dimension)// Vector size for shared memory writes (half2)#define VECTOR_SIZE_H2 2// Struct to hold precomputed N-dimension GEMM indicesstruct NDecomposed {    int ow_eff;    int oh_eff;    int n_batch_idx;    bool isValidPixel; // True if this pixel_idx is within N_gemm bounds    int h_in_base;     int w_in_base; };__global__ void conv2d_implicit_gemm_wmma_kernel(    const float* __restrict__ input_ptr,    // Input: (N, Cin, Hin, Win)    const float* __restrict__ weight_ptr,   // Weights: (Cout, Cin, Kh, Kw)    const float* __restrict__ bias_ptr,     // Bias: (Cout) or nullptr    float* __restrict__ output_ptr,         // Output: (N, Cout, Hout, Wout)    const int N_batch, const int C_in, const int H_in, const int W_in,    const int C_out, const int K_h, const int K_w,    const int stride_h, const int stride_w,    const int pad_h, const int pad_w,    const int H_out, const int W_out,    const int M_gemm, // C_out    const int N_gemm, // N_batch * H_out * W_out    const int K_gemm  // C_in * K_h * K_w) {    // Thread identification    const int warp_id = threadIdx.x / warpSize;        // 0 .. WARPS_PER_BLOCK-1    const int lane_id = threadIdx.x % warpSize;        // 0 .. 31 (or warpSize-1)    // Top-left corner of the macro-tile this block is responsible for in GEMM terms    const int block_row_gemm_start = TILE_M_PER_BLOCK * blockIdx.y;    const int block_col_gemm_start = TILE_N_PER_BLOCK * blockIdx.x;    // Shared memory for tiles of A (weights) and B (input/im2col) - Double Buffered for K-loop pipelining    __shared__ half Asub_pipe[2][TILE_M_PER_BLOCK][WMMA_K + SKEW_HALF];    __shared__ half Bsub_pipe[2][TILE_N_PER_BLOCK][WMMA_K + SKEW_HALF];    // Shared memory for precomputed N-indices    __shared__ NDecomposed n_params_sh[TILE_N_PER_BLOCK];    // Shared memory for output stage (per-warp buffers)    __shared__ float C_shmem_output_buffers[WARPS_PER_BLOCK][WMMA_M][WMMA_N];    // Accumulator fragments per warp.    wmma::fragment<wmma::accumulator, WMMA_M, WMMA_N, WMMA_K, float> acc_frag[BLOCK_N_TILES_WMMA];    #pragma unroll    for (int i = 0; i < BLOCK_N_TILES_WMMA; ++i) {        wmma::fill_fragment(acc_frag[i], 0.0f);    }    // Populate n_params_sh once at the beginning of the kernel    if (threadIdx.x < TILE_N_PER_BLOCK) {        int r_b_tile_idx = threadIdx.x;         int current_pixel_idx = block_col_gemm_start + r_b_tile_idx;        if (current_pixel_idx < N_gemm) {            n_params_sh[r_b_tile_idx].ow_eff = current_pixel_idx % W_out;            int temp_div_wout = current_pixel_idx / W_out;            n_params_sh[r_b_tile_idx].oh_eff = temp_div_wout % H_out;            n_params_sh[r_b_tile_idx].n_batch_idx = temp_div_wout / H_out;            n_params_sh[r_b_tile_idx].isValidPixel = true;            n_params_sh[r_b_tile_idx].h_in_base = n_params_sh[r_b_tile_idx].oh_eff * stride_h - pad_h;            n_params_sh[r_b_tile_idx].w_in_base = n_params_sh[r_b_tile_idx].ow_eff * stride_w - pad_w;        } else {            n_params_sh[r_b_tile_idx].isValidPixel = false;            n_params_sh[r_b_tile_idx].ow_eff = 0;             n_params_sh[r_b_tile_idx].oh_eff = 0;            n_params_sh[r_b_tile_idx].n_batch_idx = 0;            n_params_sh[r_b_tile_idx].h_in_base = 0;             n_params_sh[r_b_tile_idx].w_in_base = 0;        }    }    __syncthreads();    // Constants for vectorized shared memory loading    // Number of half2 elements along K-dim for a shared memory tile row    const int NUM_H2_ELEMENTS_IN_K_DIM = WMMA_K / VECTOR_SIZE_H2;    // Number of thread groups, where each group has NUM_H2_ELEMENTS_IN_K_DIM threads.    // Each group is responsible for loading the K-dimension for one M-row (for A) or N-row (for B) at a time,    // iterating over M-rows or N-rows with this step size.    const int NUM_ROW_PROCESSING_GROUPS = THREADS_PER_BLOCK / NUM_H2_ELEMENTS_IN_K_DIM;    // --- K-Loop Pipelining ---    int num_k_tiles = (K_gemm + WMMA_K - 1) / WMMA_K;
    // --- Prologue: Load first k-tile (k_tile_iter = 0) into pipe_idx = 0 ---    if (num_k_tiles > 0) {         int k_tile_start_prologue = 0;         int current_pipe_idx_prologue = 0;         // Load Asub_pipe[0] for k_tile_iter = 0        {            // This thread is responsible for the 'h2_idx_in_k_dim_A'-th half2 element            // in the K-dimension of the shared memory tile.            int h2_idx_in_k_dim_A = threadIdx.x % NUM_H2_ELEMENTS_IN_K_DIM;            // Starting 'half' index in shared memory for this half2 write.            int shmem_k_start_for_h2_A = h2_idx_in_k_dim_A * VECTOR_SIZE_H2;            // Global k-indices for the two half elements.            int k_global_A_0 = k_tile_start_prologue + shmem_k_start_for_h2_A;            int k_global_A_1 = k_tile_start_prologue + shmem_k_start_for_h2_A + 1;            // Decompose k_global_A_0            int kw_eff_reg_A_0 = 0, kh_eff_reg_A_0 = 0, ic_eff_reg_A_0 = 0;            bool is_valid_k_A_0 = (k_global_A_0 < K_gemm);            if (is_valid_k_A_0) {                kw_eff_reg_A_0 = k_global_A_0 % K_w;                int temp_div_kw_A_0 = k_global_A_0 / K_w;                kh_eff_reg_A_0 = temp_div_kw_A_0 % K_h;                ic_eff_reg_A_0 = temp_div_kw_A_0 / K_h;            }            // Decompose k_global_A_1            int kw_eff_reg_A_1 = 0, kh_eff_reg_A_1 = 0, ic_eff_reg_A_1 = 0;            bool is_valid_k_A_1 = (k_global_A_1 < K_gemm);            if (is_valid_k_A_1) {                kw_eff_reg_A_1 = k_global_A_1 % K_w;                int temp_div_kw_A_1 = k_global_A_1 / K_w;                kh_eff_reg_A_1 = temp_div_kw_A_1 % K_h;                ic_eff_reg_A_1 = temp_div_kw_A_1 / K_h;            }
            // This thread belongs to 'm_row_group_id_A'-th group of threads.            // This group iterates over M-rows of the Asub_pipe tile.            int m_row_group_id_A = threadIdx.x / NUM_H2_ELEMENTS_IN_K_DIM;            for (int r_a_tile_base = m_row_group_id_A; r_a_tile_base < TILE_M_PER_BLOCK; r_a_tile_base += NUM_ROW_PROCESSING_GROUPS) {                int oc_idx = block_row_gemm_start + r_a_tile_base;                float weight_val_0 = 0.0f;                if (oc_idx < C_out && is_valid_k_A_0) {                    weight_val_0 = weight_ptr[oc_idx * C_in * K_h * K_w +                                              ic_eff_reg_A_0 * K_h * K_w +                                              kh_eff_reg_A_0 * K_w +                                              kw_eff_reg_A_0];                }                float weight_val_1 = 0.0f;                if (oc_idx < C_out && is_valid_k_A_1) {                    weight_val_1 = weight_ptr[oc_idx * C_in * K_h * K_w +                                              ic_eff_reg_A_1 * K_h * K_w +                                              kh_eff_reg_A_1 * K_w +                                              kw_eff_reg_A_1];                }                half2* smem_ptr_h2_A = reinterpret_cast<half2*>(                    &Asub_pipe[current_pipe_idx_prologue][r_a_tile_base][shmem_k_start_for_h2_A]                );                *smem_ptr_h2_A = make_half2(__float2half(weight_val_0), __float2half(weight_val_1));            }        }        // Load Bsub_pipe[0] for k_tile_iter = 0        {            int h2_idx_in_k_dim_B = threadIdx.x % NUM_H2_ELEMENTS_IN_K_DIM;            int shmem_k_start_for_h2_B = h2_idx_in_k_dim_B * VECTOR_SIZE_H2;            int k_global_B_0 = k_tile_start_prologue + shmem_k_start_for_h2_B;            int k_global_B_1 = k_tile_start_prologue + shmem_k_start_for_h2_B + 1;            int kw_eff_reg_B_0 = 0, kh_eff_reg_B_0 = 0, ic_eff_reg_B_0 = 0;            bool is_valid_k_B_0 = (k_global_B_0 < K_gemm);            if (is_valid_k_B_0) {                kw_eff_reg_B_0 = k_global_B_0 % K_w;                int temp_div_kw_B_0 = k_global_B_0 / K_w;                kh_eff_reg_B_0 = temp_div_kw_B_0 % K_h;                ic_eff_reg_B_0 = temp_div_kw_B_0 / K_h;            }            int kw_eff_reg_B_1 = 0, kh_eff_reg_B_1 = 0, ic_eff_reg_B_1 = 0;            bool is_valid_k_B_1 = (k_global_B_1 < K_gemm);            if (is_valid_k_B_1) {                kw_eff_reg_B_1 = k_global_B_1 % K_w;                int temp_div_kw_B_1 = k_global_B_1 / K_w;                kh_eff_reg_B_1 = temp_div_kw_B_1 % K_h;                ic_eff_reg_B_1 = temp_div_kw_B_1 / K_h;            }            int n_row_group_id_B = threadIdx.x / NUM_H2_ELEMENTS_IN_K_DIM;            for (int r_b_tile_base = n_row_group_id_B; r_b_tile_base < TILE_N_PER_BLOCK; r_b_tile_base += NUM_ROW_PROCESSING_GROUPS) {                float input_val_0 = 0.0f;                if (n_params_sh[r_b_tile_base].isValidPixel && is_valid_k_B_0) {                    const NDecomposed& current_n_params = n_params_sh[r_b_tile_base];                    int h_in_eff_0 = current_n_params.h_in_base + kh_eff_reg_B_0;                    int w_in_eff_0 = current_n_params.w_in_base + kw_eff_reg_B_0;                    if (h_in_eff_0 >= 0 && h_in_eff_0 < H_in && w_in_eff_0 >= 0 && w_in_eff_0 < W_in) {                        input_val_0 = input_ptr[current_n_params.n_batch_idx * C_in * H_in * W_in +                                              ic_eff_reg_B_0 * H_in * W_in +                                              h_in_eff_0 * W_in +                                              w_in_eff_0];                    }                }                float input_val_1 = 0.0f;                 if (n_params_sh[r_b_tile_base].isValidPixel && is_valid_k_B_1) {                    const NDecomposed& current_n_params = n_params_sh[r_b_tile_base];                    int h_in_eff_1 = current_n_params.h_in_base + kh_eff_reg_B_1;                    int w_in_eff_1 = current_n_params.w_in_base + kw_eff_reg_B_1;                     if (h_in_eff_1 >= 0 && h_in_eff_1 < H_in && w_in_eff_1 >= 0 && w_in_eff_1 < W_in) {                        input_val_1 = input_ptr[current_n_params.n_batch_idx * C_in * H_in * W_in +                                              ic_eff_reg_B_1 * H_in * W_in +                                              h_in_eff_1 * W_in +                                              w_in_eff_1];                    }                }                half2* smem_ptr_h2_B = reinterpret_cast<half2*>(                    &Bsub_pipe[current_pipe_idx_prologue][r_b_tile_base][shmem_k_start_for_h2_B]                );                *smem_ptr_h2_B = make_half2(__float2half(input_val_0), __float2half(input_val_1));            }        }    }    // Loop over the K_gemm dimension in tiles of WMMA_K    for (int k_tile_iter = 0; k_tile_iter < num_k_tiles; ++k_tile_iter) {        __syncthreads(); // Sync point for pipelining        int compute_pipe_idx = k_tile_iter % 2;        int load_pipe_idx = (k_tile_iter + 1) % 2;        // --- Load Stage for next k-tile (k_tile_iter + 1) into load_pipe_idx ---        int k_tile_start_for_load = (k_tile_iter + 1) * WMMA_K;        if (k_tile_start_for_load < K_gemm) {             // Load Asub_pipe[load_pipe_idx]            {                 int h2_idx_in_k_dim_A = threadIdx.x % NUM_H2_ELEMENTS_IN_K_DIM;                int shmem_k_start_for_h2_A = h2_idx_in_k_dim_A * VECTOR_SIZE_H2;                int k_global_A_0 = k_tile_start_for_load + shmem_k_start_for_h2_A;                int k_global_A_1 = k_tile_start_for_load + shmem_k_start_for_h2_A + 1;                int kw_eff_reg_A_0 = 0, kh_eff_reg_A_0 = 0, ic_eff_reg_A_0 = 0;                bool is_valid_k_A_0 = (k_global_A_0 < K_gemm);                if (is_valid_k_A_0) {                    kw_eff_reg_A_0 = k_global_A_0 % K_w;                    int temp_div_kw_A_0 = k_global_A_0 / K_w;                    kh_eff_reg_A_0 = temp_div_kw_A_0 % K_h;                    ic_eff_reg_A_0 = temp_div_kw_A_0 / K_h;                }                int kw_eff_reg_A_1 = 0, kh_eff_reg_A_1 = 0, ic_eff_reg_A_1 = 0;                bool is_valid_k_A_1 = (k_global_A_1 < K_gemm);                if (is_valid_k_A_1) {                    kw_eff_reg_A_1 = k_global_A_1 % K_w;                    int temp_div_kw_A_1 = k_global_A_1 / K_w;                    kh_eff_reg_A_1 = temp_div_kw_A_1 % K_h;                    ic_eff_reg_A_1 = temp_div_kw_A_1 / K_h;                }
                int m_row_group_id_A = threadIdx.x / NUM_H2_ELEMENTS_IN_K_DIM;                for (int r_a_tile_base = m_row_group_id_A; r_a_tile_base < TILE_M_PER_BLOCK; r_a_tile_base += NUM_ROW_PROCESSING_GROUPS) {                    int oc_idx = block_row_gemm_start + r_a_tile_base;                    float weight_val_0 = 0.0f;                    if (oc_idx < C_out && is_valid_k_A_0) {                        weight_val_0 = weight_ptr[oc_idx * C_in * K_h * K_w +                                                  ic_eff_reg_A_0 * K_h * K_w +                                                  kh_eff_reg_A_0 * K_w +                                                  kw_eff_reg_A_0];                    }                    float weight_val_1 = 0.0f;                    if (oc_idx < C_out && is_valid_k_A_1) {                        weight_val_1 = weight_ptr[oc_idx * C_in * K_h * K_w +                                                  ic_eff_reg_A_1 * K_h * K_w +                                                  kh_eff_reg_A_1 * K_w +                                                  kw_eff_reg_A_1];                    }                    half2* smem_ptr_h2_A = reinterpret_cast<half2*>(                        &Asub_pipe[load_pipe_idx][r_a_tile_base][shmem_k_start_for_h2_A]                    );                    *smem_ptr_h2_A = make_half2(__float2half(weight_val_0), __float2half(weight_val_1));                }            }             // Load Bsub_pipe[load_pipe_idx]            {                 int h2_idx_in_k_dim_B = threadIdx.x % NUM_H2_ELEMENTS_IN_K_DIM;                int shmem_k_start_for_h2_B = h2_idx_in_k_dim_B * VECTOR_SIZE_H2;                int k_global_B_0 = k_tile_start_for_load + shmem_k_start_for_h2_B;                int k_global_B_1 = k_tile_start_for_load + shmem_k_start_for_h2_B + 1;                int kw_eff_reg_B_0 = 0, kh_eff_reg_B_0 = 0, ic_eff_reg_B_0 = 0;                bool is_valid_k_B_0 = (k_global_B_0 < K_gemm);                if (is_valid_k_B_0) {                    kw_eff_reg_B_0 = k_global_B_0 % K_w;                    int temp_div_kw_B_0 = k_global_B_0 / K_w;                    kh_eff_reg_B_0 = temp_div_kw_B_0 % K_h;                    ic_eff_reg_B_0 = temp_div_kw_B_0 / K_h;                }                int kw_eff_reg_B_1 = 0, kh_eff_reg_B_1 = 0, ic_eff_reg_B_1 = 0;                bool is_valid_k_B_1 = (k_global_B_1 < K_gemm);                if (is_valid_k_B_1) {                    kw_eff_reg_B_1 = k_global_B_1 % K_w;                    int temp_div_kw_B_1 = k_global_B_1 / K_w;                    kh_eff_reg_B_1 = temp_div_kw_B_1 % K_h;                    ic_eff_reg_B_1 = temp_div_kw_B_1 / K_h;                }                int n_row_group_id_B = threadIdx.x / NUM_H2_ELEMENTS_IN_K_DIM;                for (int r_b_tile_base = n_row_group_id_B; r_b_tile_base < TILE_N_PER_BLOCK; r_b_tile_base += NUM_ROW_PROCESSING_GROUPS) {                    float input_val_0 = 0.0f;                    if (n_params_sh[r_b_tile_base].isValidPixel && is_valid_k_B_0) {                        const NDecomposed& current_n_params = n_params_sh[r_b_tile_base];                        int h_in_eff_0 = current_n_params.h_in_base + kh_eff_reg_B_0;                        int w_in_eff_0 = current_n_params.w_in_base + kw_eff_reg_B_0;                        if (h_in_eff_0 >= 0 && h_in_eff_0 < H_in && w_in_eff_0 >= 0 && w_in_eff_0 < W_in) {                            input_val_0 = input_ptr[current_n_params.n_batch_idx * C_in * H_in * W_in +                                                  ic_eff_reg_B_0 * H_in * W_in +                                                  h_in_eff_0 * W_in +                                                  w_in_eff_0];                        }                    }                    float input_val_1 = 0.0f;                    if (n_params_sh[r_b_tile_base].isValidPixel && is_valid_k_B_1) {                        const NDecomposed& current_n_params = n_params_sh[r_b_tile_base];                        int h_in_eff_1 = current_n_params.h_in_base + kh_eff_reg_B_1;                        int w_in_eff_1 = current_n_params.w_in_base + kw_eff_reg_B_1;                        if (h_in_eff_1 >= 0 && h_in_eff_1 < H_in && w_in_eff_1 >= 0 && w_in_eff_1 < W_in) {                            input_val_1 = input_ptr[current_n_params.n_batch_idx * C_in * H_in * W_in +                                                  ic_eff_reg_B_1 * H_in * W_in +                                                  h_in_eff_1 * W_in +                                                  w_in_eff_1];                        }                    }                    half2* smem_ptr_h2_B = reinterpret_cast<half2*>(                        &Bsub_pipe[load_pipe_idx][r_b_tile_base][shmem_k_start_for_h2_B]                    );                    *smem_ptr_h2_B = make_half2(__float2half(input_val_0), __float2half(input_val_1));                }            }         }        // --- Compute Stage for current k-tile (k_tile_iter) using compute_pipe_idx ---        int a_row_start_in_tile = warp_id * WMMA_M;         wmma::fragment<wmma::matrix_a, WMMA_M, WMMA_N, WMMA_K, half, wmma::row_major> a_frag;        wmma::load_matrix_sync(a_frag, &Asub_pipe[compute_pipe_idx][a_row_start_in_tile][0], WMMA_K + SKEW_HALF);        wmma::fragment<wmma::matrix_b, WMMA_M, WMMA_N, WMMA_K, half, wmma::col_major> b_frag_inner_pipe[2];        if (BLOCK_N_TILES_WMMA > 0) {            int b_col_start_in_tile_current = 0 * WMMA_N;             wmma::load_matrix_sync(b_frag_inner_pipe[0], &Bsub_pipe[compute_pipe_idx][b_col_start_in_tile_current][0], WMMA_K + SKEW_HALF);        }
        int current_inner_pipe_idx = 0;        #pragma unroll        for (int n_tile = 0; n_tile < BLOCK_N_TILES_WMMA; ++n_tile) {            int next_inner_pipe_idx = 1 - current_inner_pipe_idx;            if (n_tile < BLOCK_N_TILES_WMMA - 1) {                int b_col_start_in_tile_next = (n_tile + 1) * WMMA_N;                wmma::load_matrix_sync(b_frag_inner_pipe[next_inner_pipe_idx], &Bsub_pipe[compute_pipe_idx][b_col_start_in_tile_next][0], WMMA_K + SKEW_HALF);            }            wmma::mma_sync(acc_frag[n_tile], a_frag, b_frag_inner_pipe[current_inner_pipe_idx], acc_frag[n_tile]);
            current_inner_pipe_idx = next_inner_pipe_idx;        }    }    __syncthreads();     // Store results from accumulator fragments to global memory    #pragma unroll    for (int n_tile = 0; n_tile < BLOCK_N_TILES_WMMA; ++n_tile) {        wmma::store_matrix_sync(&C_shmem_output_buffers[warp_id][0][0], acc_frag[n_tile], WMMA_N, wmma::mem_row_major);        for (int elem_idx_in_frag = lane_id; elem_idx_in_frag < WMMA_M * WMMA_N; elem_idx_in_frag += warpSize) {            int r_frag = elem_idx_in_frag / WMMA_N;            int c_frag = elem_idx_in_frag % WMMA_N;            int oc_idx = block_row_gemm_start + (warp_id * WMMA_M) + r_frag;
            int offset_in_block_N_processing = (n_tile * WMMA_N) + c_frag;            if (oc_idx < C_out && offset_in_block_N_processing < TILE_N_PER_BLOCK &&                 n_params_sh[offset_in_block_N_processing].isValidPixel) {                const NDecomposed& current_n_params = n_params_sh[offset_in_block_N_processing];                int ow_eff = current_n_params.ow_eff;                int oh_eff = current_n_params.oh_eff;                int n_batch_idx = current_n_params.n_batch_idx;                float val = C_shmem_output_buffers[warp_id][r_frag][c_frag];                if (bias_ptr != nullptr) {                    val += bias_ptr[oc_idx];                }                output_ptr[n_batch_idx * C_out * H_out * W_out +                           oc_idx * H_out * W_out +                           oh_eff * W_out +                           ow_eff] = val;            }        }    }}torch::Tensor conv2d_implicit_gemm_cuda(    torch::Tensor input, torch::Tensor weight, torch::Tensor bias,    int N_batch, int C_in, int H_in, int W_in,    int C_out, int K_h, int K_w,    int stride_h, int stride_w, int pad_h, int pad_w,    int H_out, int W_out) {    TORCH_CHECK(input.device().is_cuda(), "Input must be a CUDA tensor");    TORCH_CHECK(weight.device().is_cuda(), "Weight must be a CUDA tensor");    TORCH_CHECK(input.dtype() == torch::kFloat32, "Input must be float32");    TORCH_CHECK(weight.dtype() == torch::kFloat32, "Weight must be float32");    if (bias.defined()) {        TORCH_CHECK(bias.device().is_cuda(), "Bias must be a CUDA tensor");        TORCH_CHECK(bias.dtype() == torch::kFloat32, "Bias must be float32");        TORCH_CHECK(bias.dim() == 1 && bias.size(0) == C_out, "Bias has wrong shape");    }    TORCH_CHECK(input.dim() == 4, "Input must be 4D");    TORCH_CHECK(weight.dim() == 4, "Weight must be 4D");    TORCH_CHECK(input.size(0) == N_batch, "Input N_batch mismatch");    TORCH_CHECK(input.size(1) == C_in, "Input C_in mismatch");    TORCH_CHECK(input.size(2) == H_in, "Input H_in mismatch");    TORCH_CHECK(input.size(3) == W_in, "Input W_in mismatch");    TORCH_CHECK(weight.size(0) == C_out, "Weight C_out mismatch");    TORCH_CHECK(weight.size(1) == C_in, "Weight C_in mismatch");    TORCH_CHECK(weight.size(2) == K_h, "Weight K_h mismatch");    TORCH_CHECK(weight.size(3) == K_w, "Weight K_w mismatch");    auto output = torch::zeros({N_batch, C_out, H_out, W_out}, input.options());    const int M_gemm = C_out;    const int N_gemm = N_batch * H_out * W_out;    const int K_gemm = C_in * K_h * K_w;    if (M_gemm == 0 || N_gemm == 0) {         return output;    }    if (K_gemm == 0) {          if (bias.defined()) {             output = output + bias.reshape({1, C_out, 1, 1});        }        return output;     }    dim3 block_dim(THREADS_PER_BLOCK);    dim3 grid_dim(        (N_gemm + TILE_N_PER_BLOCK - 1) / TILE_N_PER_BLOCK,         (M_gemm + TILE_M_PER_BLOCK - 1) / TILE_M_PER_BLOCK      );    const float* bias_ptr_data = bias.defined() ? bias.data_ptr<float>() : nullptr;    cudaStream_t stream = at::cuda::getCurrentCUDAStream();    conv2d_implicit_gemm_wmma_kernel<<<grid_dim, block_dim, 0, stream>>>(        input.data_ptr<float>(),        weight.data_ptr<float>(),        bias_ptr_data,        output.data_ptr<float>(),        N_batch, C_in, H_in, W_in,        C_out, K_h, K_w,        stride_h, stride_w, pad_h, pad_w,        H_out, W_out,        M_gemm, N_gemm, K_gemm    );
    AT_CUDA_CHECK(cudaGetLastError());    return output;}"""conv2d_implicit_gemm_cuda_declaration = r"""torch::Tensor conv2d_implicit_gemm_cuda(    torch::Tensor input, torch::Tensor weight, torch::Tensor bias,    int N_batch, int C_in, int H_in, int W_in,    int C_out, int K_h, int K_w,    int stride_h, int stride_w, int pad_h, int pad_w,    int H_out, int W_out);"""# JIT compile the CUDA kernelcustom_conv2d_wmma_ops = load_inline(    name="custom_conv2d_wmma_ops_optimized_k_pipe_vec_smem", # Changed name to avoid collision    cpp_sources=conv2d_implicit_gemm_cuda_declaration,    cuda_sources=conv2d_implicit_gemm_cuda_source,    functions=["conv2d_implicit_gemm_cuda"],    verbose=True,     extra_cuda_cflags=["-arch=sm_70", "--use_fast_math", "-std=c++17"] )class ModelNew(nn.Module):    def __init__(self, num_classes=1000): # num_classes is part of original signature, kept for consistency        super(ModelNew, self).__init__()
        # Define Conv1 parameters (matching the original model)        self.in_channels = 3        self.out_channels = 96        self.kernel_size_val = 11 # Assuming square kernel        self.stride_val = 4       # Assuming square stride        self.padding_val = 2      # Assuming square padding        # Create a temporary Conv2d layer to initialize weights and bias        temp_conv = nn.Conv2d(            in_channels=self.in_channels,             out_channels=self.out_channels,             kernel_size=self.kernel_size_val,             stride=self.stride_val,             padding=self.padding_val,            bias=True # nn.Conv2d has bias=True by default        )        self.conv1_weight = nn.Parameter(temp_conv.weight.detach().clone())        if temp_conv.bias is not None:            self.conv1_bias = nn.Parameter(temp_conv.bias.detach().clone())        else:            # Correctly register 'conv1_bias' as None if not present            self.register_parameter('conv1_bias', None)         self.custom_conv_op = custom_conv2d_wmma_ops.conv2d_implicit_gemm_cuda    def forward(self, x):        N_batch = x.size(0)        # C_in_runtime = x.size(1) # Should match self.in_channels        H_in = x.size(2)        W_in = x.size(3)        # Calculate output dimensions        H_out = (H_in + 2 * self.padding_val - self.kernel_size_val) // self.stride_val + 1        W_out = (W_in + 2 * self.padding_val - self.kernel_size_val) // self.stride_val + 1
        # Bias tensor handling: pass an undefined tensor if bias is None.        # The C++ TORCH_CHECK(bias.defined()) handles this by providing nullptr to kernel.        bias_tensor = self.conv1_bias if self.conv1_bias is not None else torch.Tensor()        x = self.custom_conv_op(            x, self.conv1_weight, bias_tensor,            N_batch, self.in_channels, H_in, W_in,            self.out_channels, self.kernel_size_val, self.kernel_size_val, # K_h, K_w            self.stride_val, self.stride_val, # stride_h, stride_w            self.padding_val, self.padding_val, # pad_h, pad_w            H_out, W_out        )        return x
